Hard Rocking Mining 4 1/2 Inch Carbide Drill Rod

Name: Hard Rocking Mining 4 12 Inch Carbide Drill Rod
Brand: ROSCHEN
Price: 1 USD

Hard Rocking Mining 4 1/2 Inch Carbide Drill Rod Manufactures

Brand Name : ROSCHEN

Model Number : 3", 3 7/8", 4", 4 1/2", 4 7/8", 5"

Certification : ISO

Place of Origin : GERMANY

MOQ : Negotiable

Price : Negotiate

Supply Ability : 100000 pcs

Packaging Details : Bundles

Name : Carbide Drill Rod

Processing type : Forging,Casting

Machine type : Drilling Tool,Drilling Equipment

Size : 4 1/2 Inch

Type : Friction Welding

Material : Carbide,High Manganese Steel

Application : Hard Rocking Mining

Contact Now

Hard Rocking Mining 4 1/2 Inch Carbide Drill Rod

Carbide Drill Rod Introduction

drill rod, another name called integral drill steels, integral rods are used by hand held rock drill in granite and marble quarries, underground mining, for small blasting hole drilling shank H22x108mm, H19x108mm, and standard hex. Bit diameters include 20-42mm,different lengths are available from 400mm to 6000mm usually.

it can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 20mm to 42mm usually. Each rods use premium quality alloy steel and excellent quality tungsten carbide to assure.

Carbide Drill Rod Parameters

Product Number	Rod OD	Length	Connection
34000	3.5	3 Mtr	Remet
34001	3.5	6 Mtr	Remet
34005	4	3 Mtr	Remet
34006	4	6 Mtr	Remet
34010	4	3 Mtr	Metzke
34011	4	6 Mtr	Metzke
34015	4	3 Mtr	Matrix
34016	4	6 Mtr	Matrix
34020	4.5	3 Mtr	Remet
34021	4.5	6 Mtr	Remet
34025	4.5	3 Mtr	Metzke
34026	4.5	6 Mtr	Metzke
34030	4.5	3 Mtr	Matrix
34031	4.5	6 Mtr	Matrix

REVERSE CIRCULATION DRILL ROD SPECIFICATIONS
Thread Type	Remet	Remet	Remet	Metzke	Metzke	Matrix	Matrix
Rod O.D.	3 1/2"	4"	4 1/2"	4"	4 1/2"	4"	4 1/2"
Outer Tube O.D.	88.9mm	101.7mm	114.3mm	101.7mm	114.3mm	101.7mm	114.3mm
Outer Tube I.D.	81.8mm	94.6mm	107.2mm	94.6mm	107.2mm	94.6mm	107.2mm
Outer Tube W.T.	5.3mm	7.1mm	7.1mm	7.1mm	7.1mm	7.1mm	7.1mm
Inner Tube O.D.	38.1mm	50.8mm	63.5mm	50.8mm	63.5mm	50.8mm	63.5mm
Inner Tube I.D.	32.6mm	45.3mm	58mm	45.3mm	58mm	45.3mm	58mm
Inner Tube W.T.	5.5mm	5.5mm	5.5mm	5.5mm	5.5mm	5.5mm	5.5mm
Spanner Flat	90mm	90mm	90mm	90mm	90mm	90mm	90mm
Weight 3.0m	75kg.	75kg.	95kg.	75kg.	95kg.	75kg.	95kg.
Weight 6.0m	120kg.	150kg.	168kg.	150kg.	168kg.	150kg.	168kg.

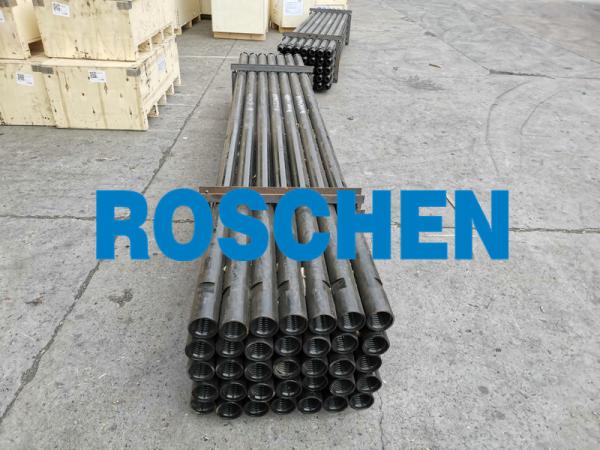

Carbide Drill Rod Pictures

Hard Rocking Mining 4 1/2 Inch Carbide Drill Rod

Product Tags:

4 1/2 Inch threading drill rod

Rocking premium drill pipe

Hard Rocking Mining 4 1/2 Inch Carbide Drill Rod Images
