Qualified 6 inch DTH hammer with QL60 DHD360 SD6 COP64 shank
Product Application
ROSCHEN down the hole(DTH)hammers have proven superior performance and adaptability to different application.
DTH hammers are ranges six main series from 3.5" to 24",it serves to drilling projects in mining,water well,geothermal,foundation,oil and gas.
Choosing the right hammer is largely determined by hole size and rock formation.We design our hammers with different outstanding advantages,and provide the various shanks for international use.
We are the only manufacturer to offer the optimum performance and the competitive price in every single application.
It's all right here. At Teamwhole drilling tools and Machinery.
DHD SHANK DTH HAMMER
| Model | Product code | Thread connection | Outer diameter | Rec.hole size(mm) | Shank style | Length without bit(mm) | Weight without bit(kg) | Working pressure (bar) |
| 3.5" | 223000 | API2 3/8"reg pin | 80 | 90-115 | DHD3.5 | 990 | 28 | 14-24 |
| 4" | 230000 | API2 3/8"reg pin | 98 | 110-138 | DHD340 | 1045 | 38 | 14-24 |
| 5" | 240000 | API3 1/2"reg pin | 126 | 138-165 | DHD350 | 1214 | 85 | 14-24 |
| 6" | 252000 | API3 1/2"reg pin | 142 | 152-203 | DHD360 | 1300 | 98 | 14-24 |
| 8" | 260000 | API3 1/2"reg pin | 180 | 203-271 | DHD380 | 1522 | 190 | 16-22 |
| 12" | 282000 | API6 5/8"reg pin | 274 | 331-445 | DHD112 | 1938 | 675 | 14-20 |

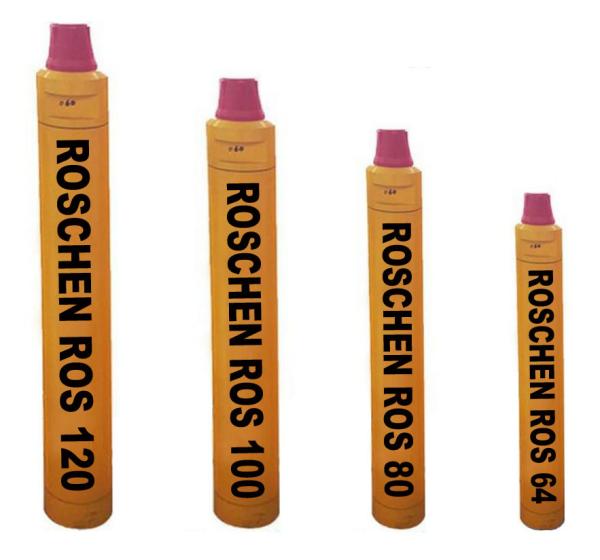

Pictures of DTH hammer
Main Features
1) Reliability

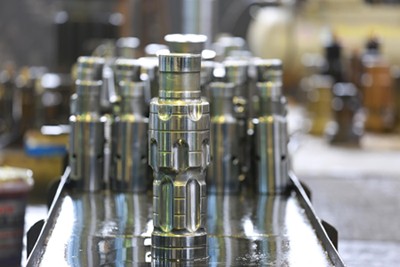

The piston of DTH Hammer uses the special (imported) high nickel alloy steel, with advanced heat treatment as military industry standard.
Strengthening processing on hammer surface for higher were-resistance.
2) Suitability

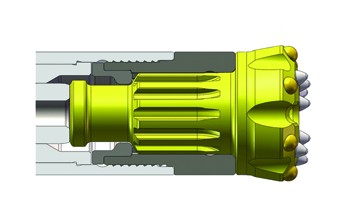

Specially designed drill bits for middle soft and hard rock formations. Easily disassembly thread for easy maintenance.
3) Efficiency
Extra-short structure design DTH hammer and bit for great efficiency of high impact energy transmission, with high impact power and fast drilling rate.
Hammer and bit design are optimized by computer simulation, with best air distribution chamber and air tightness design.

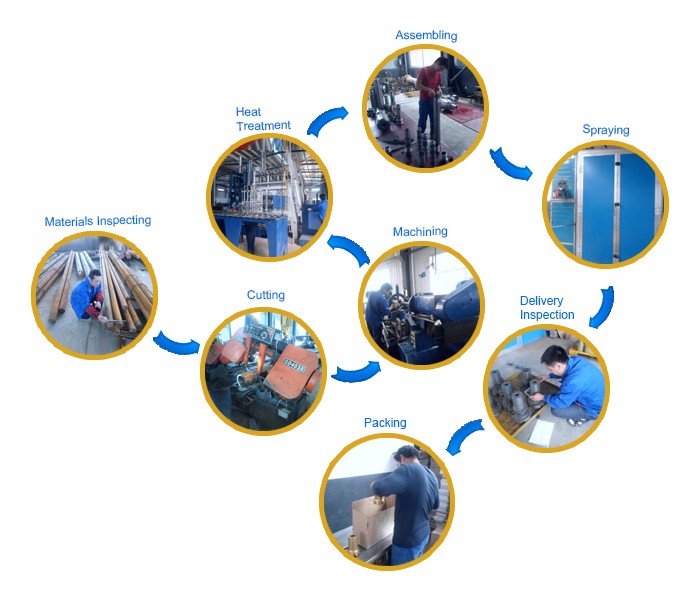

Process
| ROSCHEN DTH Hammers Specifications |
| Hammer Size | Bit Shank | ROSCHEN Code | Connection Thread | Suitable bit | Working pressure | Air consumption |
| 2" | BR2 | ROS 11 ROS 22 | RD50 box | ￠70-￠90mm | 0.7-1.75Mpa | 0.7Mpa | 4.5m3/min |
| 1.0Mpa | 4m3/min |
| 1.4Mpa | 5m3/min |
| 3" | DHD3.5 | ROS 32 | API 2 3/8" Reg | ￠90-￠110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
| COP32/COP34 |
| M30 | 1.5Mpa | 9m3/min |
| 4" | DHD340 | ROS 34 | API 2 3/8" Reg | ￠110-￠135mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
| COP44 |
| QL40 |
| SD4 | 1.8Mpa | 10m3/min |
| M40 | 2.4Mpa | 15m3/min |
| 5" | DHD350 | ROS 52 ROS 54 | API 2 3/8"Reg/API 3 1/2" Reg | ￠135-￠155mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
| COP54 |
| QL50 |
| SD5 | 1.8Mpa | 15m3/min |
| M50 | 2.4Mpa | 23m3/min |
| 6" | DHD360 | ROS 62 ROS 64 | API 3 1/2" Reg | ￠155-￠190mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
| COP64 |
| QL60 |
| SD6 | 1.8Mpa | 20m3/min |
| M60 | 2.4Mpa | 28.5m3/min |
| 8" | DHD380 | ROS 82 ROS 84 | API 4 1/2" Reg | ￠195-￠254mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
| COP84 |
| QL80 | 1.8Mpa | 26m3/min |
| SD8 | 2.4Mpa | 34m3/min |
| M80/M85 |
| 10" | SD10 | ROS 100 | API 6 5/8" Reg | ￠254-￠311mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
| Numa100 | 1.8Mpa | 40m3/min |
| ROS 100 | 2.4Mpa | 55m3/min |
| 12" | DHD1120 | ROS 120 | API 6 5/8" Reg | ￠305-￠445mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| SD12 | 1.8Mpa | 56m3/min |
| Numa120 | 2.4Mpa | 78m3/min |
| Notes: |
| Metzke, Remet thread is available! |
| Any special typ shank of DTH Hammer will be available by requests. |
